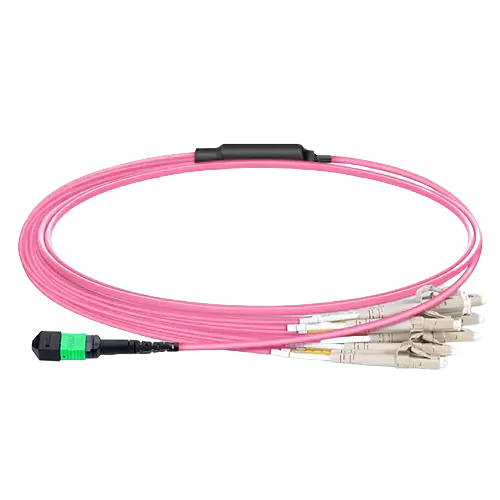

MPO-16 APC (Female) to 8x LC Duplex UPC Multimode (OM4) Harness, Type B, LSZH, Magenta
Model: MPO / MTP Patch Cables
ELVIREX provides fiber patch cables designed for reliable connectivity in data center and telecom networks. Our cables are fully compatible with SFP, SFP+, SFP28, QSFP and QSFP-DD transceivers, supporting both single-mode (OS2) and multimode (OM3/OM4/OM5) applications. Available in LC and MTP/MPO configurations, suitable for rack-to-rack and high-density interconnect environments. Custom lengths and OEM options are available.
| Connector Type | MPO Female to LC Duplex |
|---|---|
| Polish Type | APC to APC / UPC to UPC / APC to UPC optional |
| Fiber Mode | OM4 50/125μm |
| Wavelength | 850/1300nm |
| Insertion Loss | ≤0.35dB |
| Cable Diameter | 3.0mm |
| Polarity | Type A / Type B / Type C optional |
| Fiber Count | 12F |
| Cable Jacket | LSZH |
| Length | Custom |
